Scratchbuilt 1/32 Northrop JB-1 Flying Bomb

By Jim Merrigan

Introduction

The aircraft is the Northrop JB-1 flying bomb. I attended Northrop Aeronautical Institute in 1952. The Northrop company was located on what is now Hawthorne Airport. The school was part of the factory complex and shared the flightline with the company. the school ran two programs, one for A&Es, and one in Aeronautical Engineering The JB-1 was donated to the school for training purposes, Many lunch break I had sitting on its wing.

Aircraft

The JB-1 was to be Americas answer to the V1.It was to be a jet powered ground launched cruise missile with a range of 200 miles. One JB-1 was built as a manned glider to test the aerodynamics of the craft. This is the aircraft the Institute had. Back in 1952 the plane had a black fuselage with orange wings and tail. Today the JB-1is painted in the all white scheme as seen on the model. It now resides in the Western Museum of Flight at Hawthorne Airport CA.

Construction

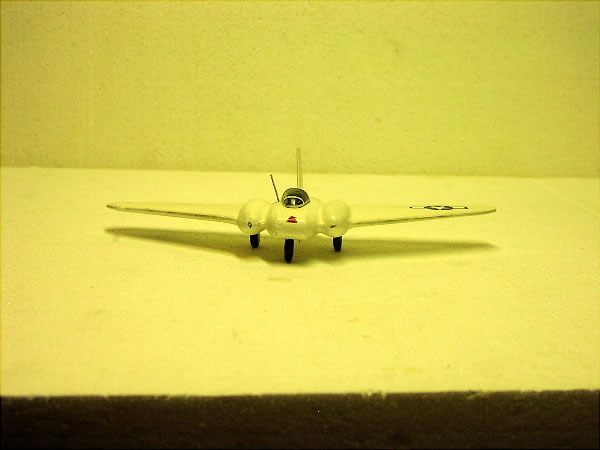

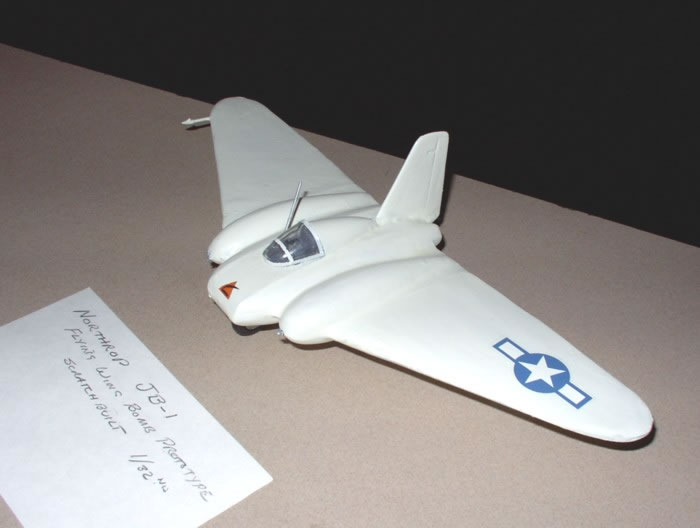

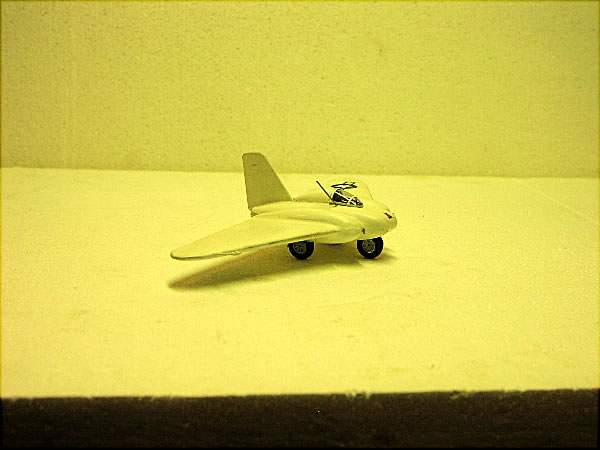

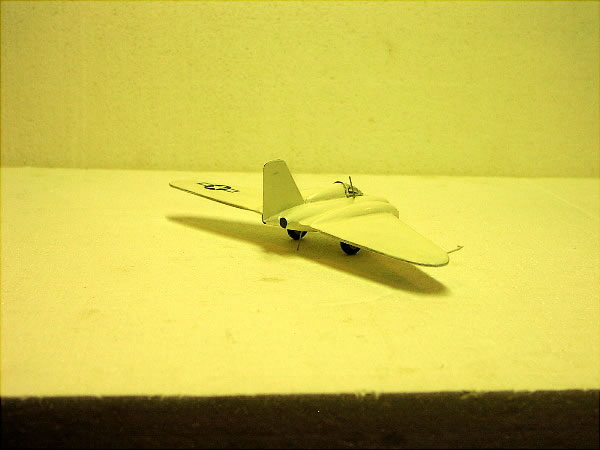

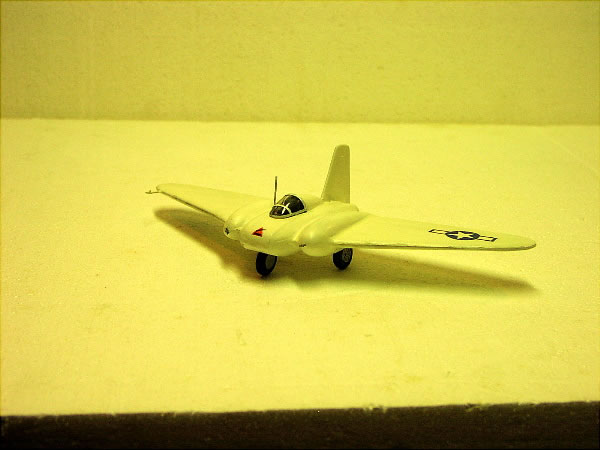

The model was made from bits and pieces from the parts box. The fuselage was fabricated from two wing tanks glued together side by side and then covering the joint with .010 sheet plastic. The canopy is part of a blister pack, the rear cockpit fairing was cut from a fuel tank. The two bomb pods were made from fuel tanks. The wings are from a C-47 and the tail is sheet plastic.

© James Merrigan 2007
