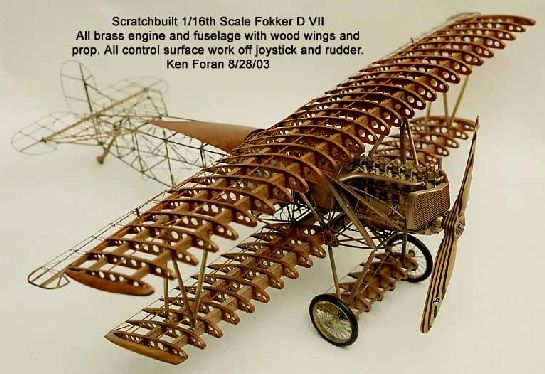

Scratch-built 1/16 Fokker D. VII

By Ken Foran

Image 01

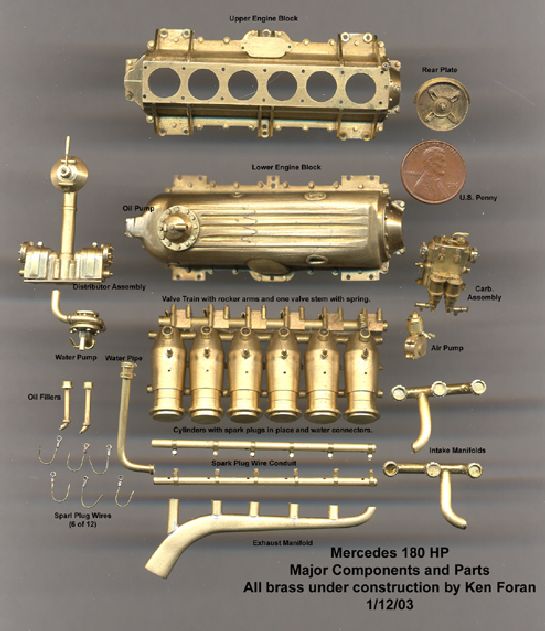

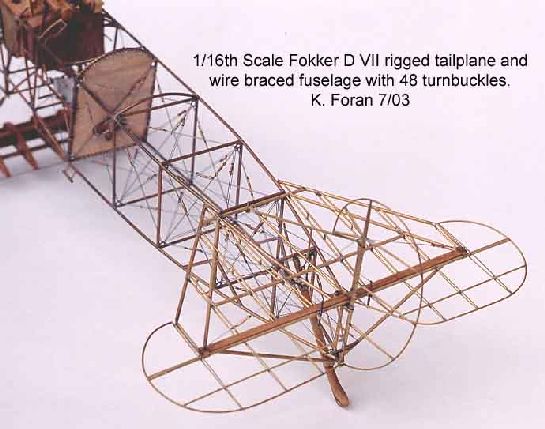

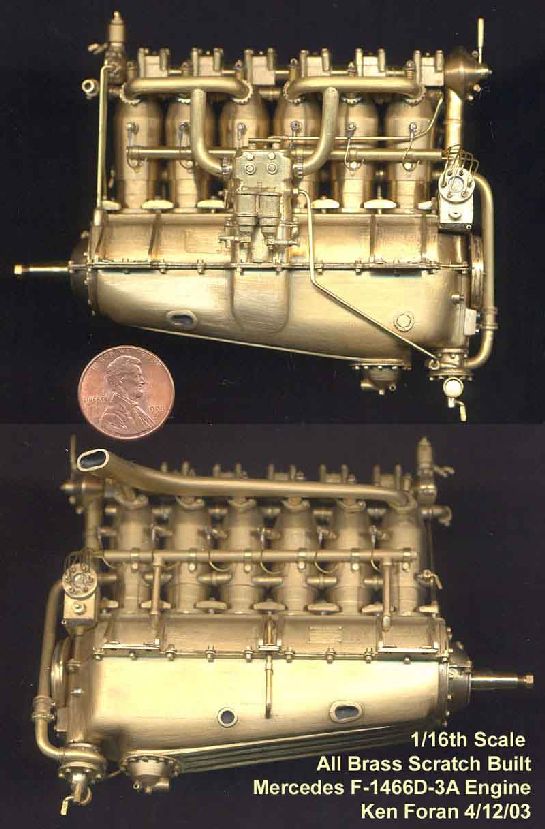

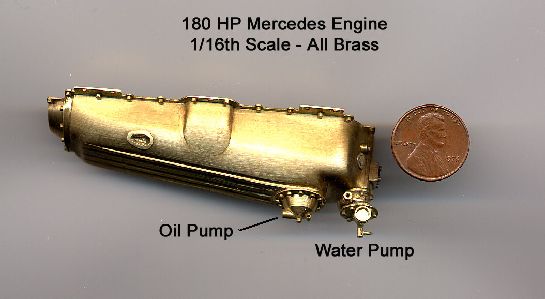

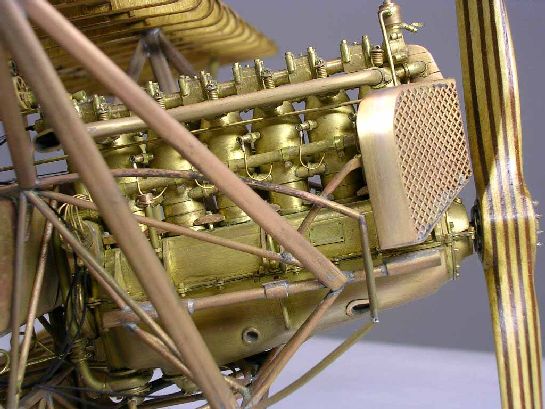

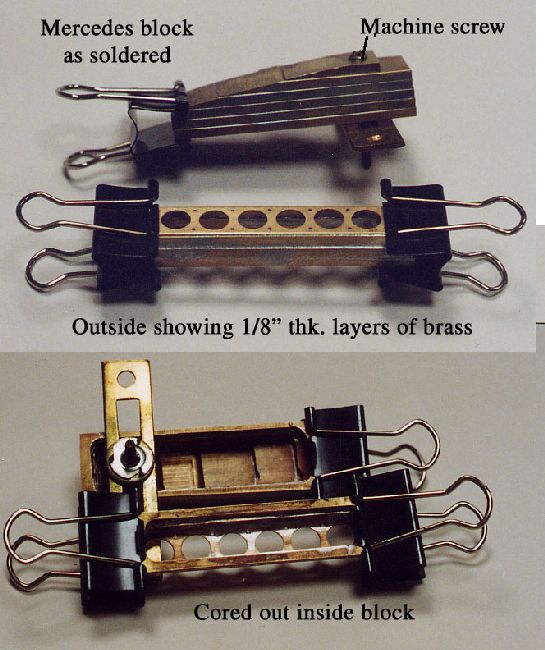

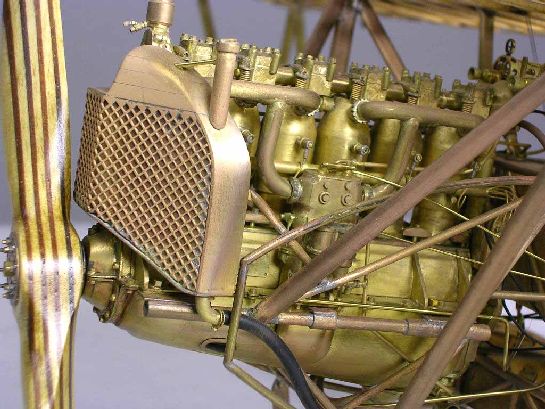

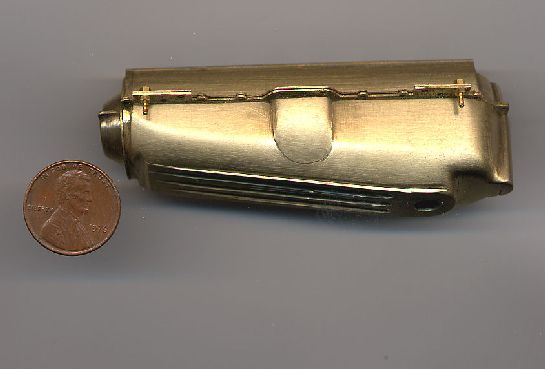

The Fokker VII was my second attempt at scratch building. Having learned how to work with brass I decided I needed a challenging subject to refine my skills and push them to new limits. The fuselage structure was similar to the DR I triplane, however the engine looked like it could be fun to figure out how to fabricated. The upper and lower crankcases were built up in layers of 1/8" brass sheet stock and soldered together and shaped all by hand with a file very carefully since one cannot go back and use filler.

Image 02 Image 03 Image 04 Image 05 Image 06 Image 07 Image 08 Image 10 Image 11 Image 12 Image 13 Image 14 Image 15

© Ken Foran 2003
