Revell 1/32 P-38 Lightning
By Kevin Williams
My first ever contribution to LSP. I unfortunately don't have a lot of photos of all that was done to this kit. At the time of building, I used a Minolta 35mm SLR for taking my photos. Attached images are scanned from original prints. It was my habit at the time, and still, to use photos as a visual reinforcement for my description of work done at model contests around the region.

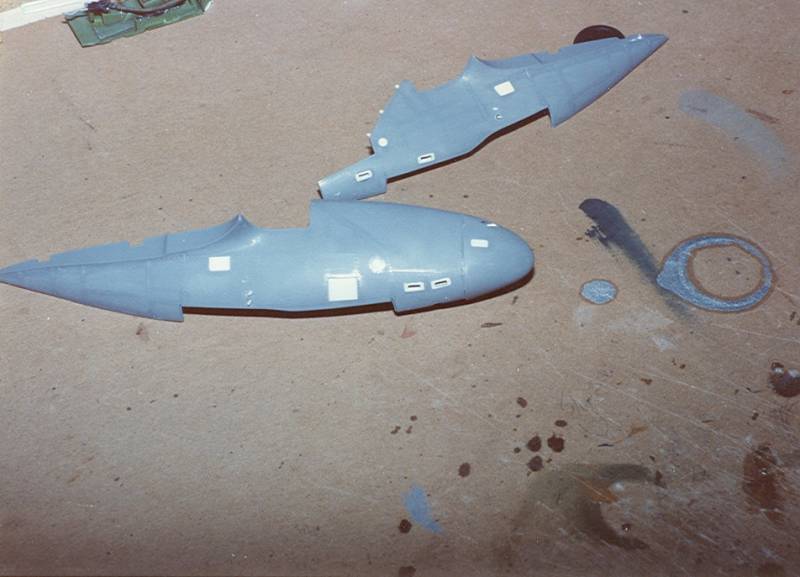

This is a 1/32 scale Revell P-38 Lightning I built roughly 12-15 years ago, I can't really remember. It was my intention to add as much detail as I thought necessary to make for an attractive display, as well as be a competitive model. To that end, several things were done. Several small plates and framing around shell discharge are were done with plastic strips.
![Image 01](/articles/images/682/01.jpg)

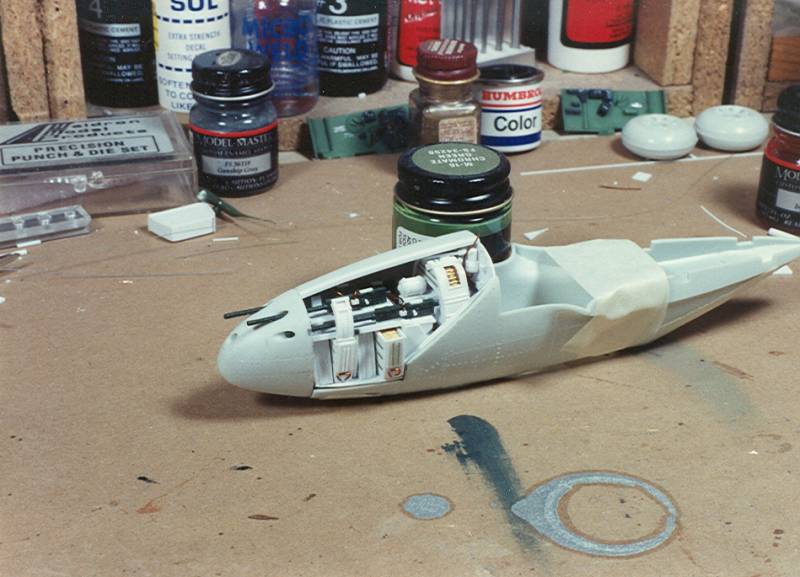

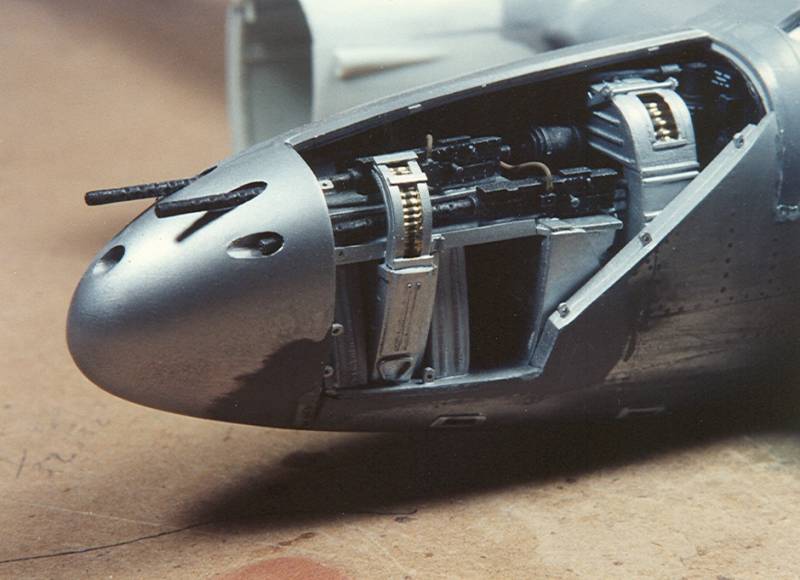

Gun bay, including 20mm cannon, ammo feed chutes, ammo boxes, access door, etc. was completely scratch built using rods, tubes and sheet plastic, (as well as a healthy dose of reference materials).
![Image 02](/articles/images/682/02.jpg)
![Image 03](/articles/images/682/03.jpg)
![Image 04](/articles/images/682/04.jpg)

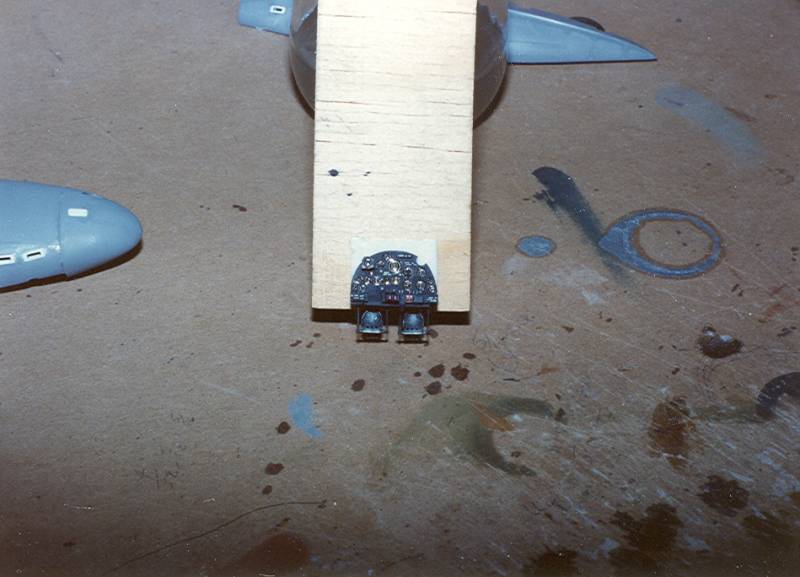

Cockpit for the most part, including instrument panel, was scratch built, and/or kit parts heavily embellished using standard methods. Some items had to be faked, as I had very limited access to reference resources.
![Image 05](/articles/images/682/05.jpg)
![Image 06](/articles/images/682/06.jpg)
![Image 07](/articles/images/682/07.jpg)
![Image 08](/articles/images/682/08.jpg)

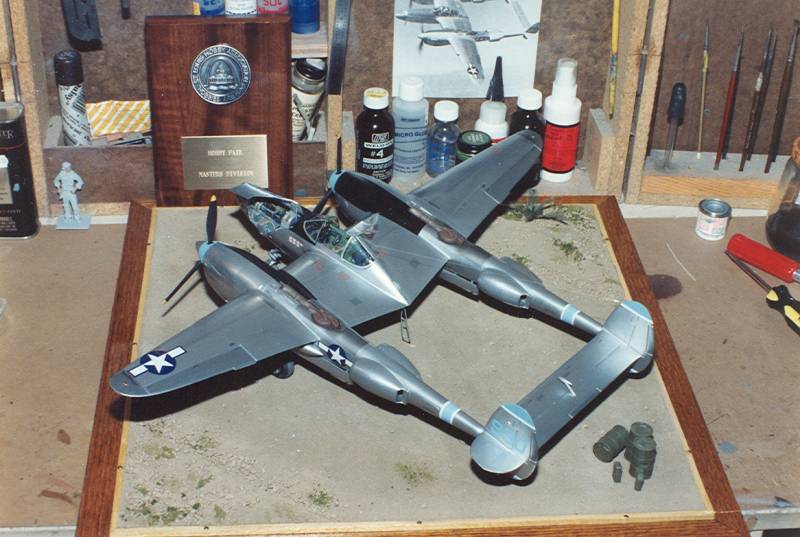

No additional detail to speak of except for scratch built boarding ladder, tires painted over a screen to simulate diamond block pattern. Fine mesh screen was added to radiator and oil cooler inlets. Main gear was shortened, nose gear extended to give a nifty tail heavy sit. Lots of weight was crammed into nose and boom fronts to compensate for the natural tail heavy sit. One boom had to be "liberated" from a spare kit, as I severely mangled the original somehow. Entire airframe was painted with MM Metalizers of various shades using wet newspaper as masks. Kit was not re-scribed, although I did consider it; rather, entire airframe was heavily sanded to reduce rivet and panel line contrast. All in all, it all worked out OK I guess.
Kit now resides in the collection of a friend that conned me out of it somehow. I guess I'll have to whip out another in the form of the Trumpeter kit one of these days. If there's a plus side to this, I believe my abilities and knowledge base have improved dramatically over the last fifteen years or so, at least I keep telling myself they have, therefore I'll end up with a much nicer Lightning when I'm finished!
![Image 09](/articles/images/682/09.jpg)
